| Item Reference | 48ZG38 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 87 |
| Length (in) | 18.2 |
| Width (in) | 13.5 |
| Height (in) | 13.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

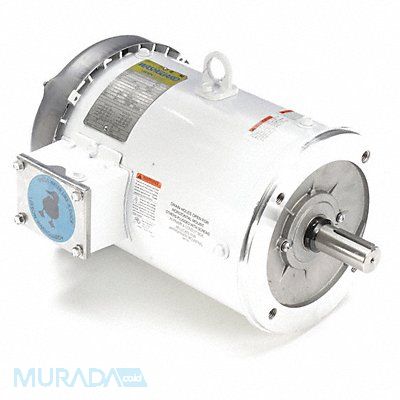

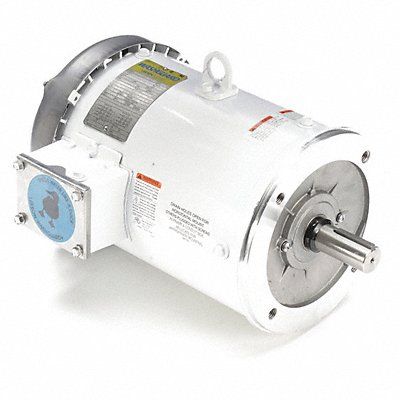

Washdown Brake Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.6/6.3 184TC Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face
Mfr 13244000
