| Item Reference | 48ZF86 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 88 |
| Length (in) | 20.2 |
| Width (in) | 15.2 |
| Height (in) | 13.6 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

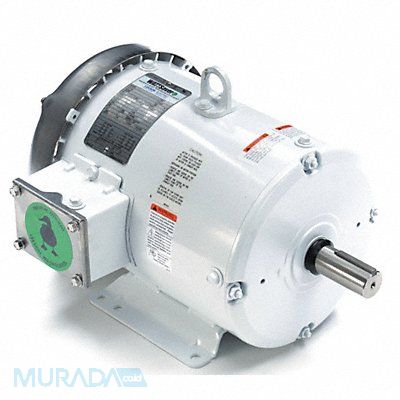

Washdown Brake Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 515 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.0/6.0 184T Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Motor Service Factor 1.25 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 13220200
