| Item Reference | 48ZG06 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 45.6 |
| Length (in) | 19.9 |
| Width (in) | 10.7 |
| Height (in) | 11.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

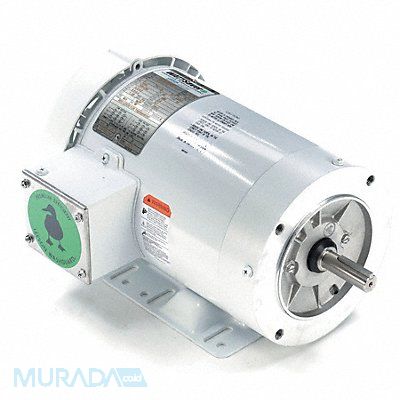

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 5.2-4.8/2.4 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base
Mfr 11948200
