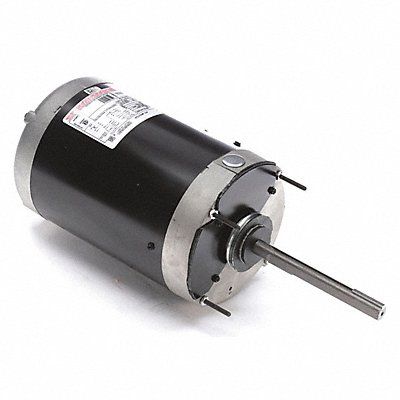

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 1 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 208-230/460V AC 5.5-5.4/2.6 Full Load Amps 56Z Frame 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Ring/Stud Motor Mounting Position All Angle
Mfr 2203
| Item Reference | 55MM71 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 38 |
| Length (in) | 27.5 |
| Width (in) | 8.25 |
| Height (in) | 9.5 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
