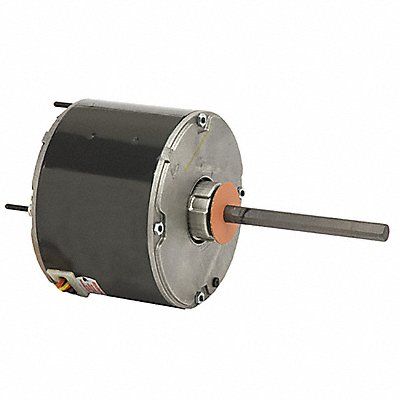

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/3 HP Nameplate RPM 1 075 No of Speeds 2 Voltage 208-230V AC 2.2 Full Load Amps 48Y Frame 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Stud Motor Mounting Position All Angle Shaft Length 6 in
Mfr 8670
| Item Reference | 55MM29 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 15.3 |
| Length (in) | 15.5 |
| Width (in) | 7 |
| Height (in) | 7 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
