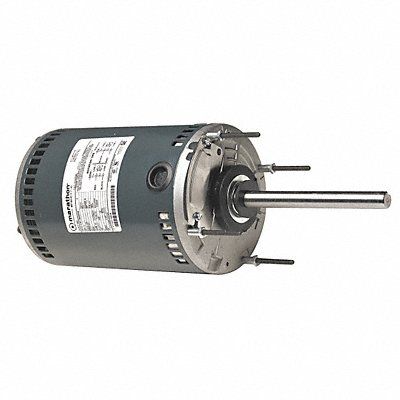

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/2 HP Nameplate RPM 825 No of Speeds 1 Voltage 208-230V AC 3.6 Full Load Amps 56Z Frame 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Band Motor Mounting Position All Angle Shaft Length 6 in
Mfr 3568
| Item Reference | 55ML97 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 26.5 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
