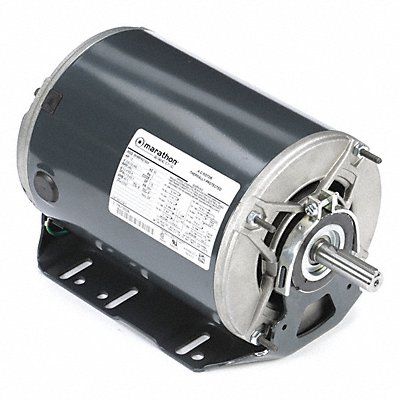

Belt Drive Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC 4.7-4.4/ 2.2 Full Load Amps 56H Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Steel
Mfr D32PA1AH9
| Item Reference | 55MM65 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 15.32 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
