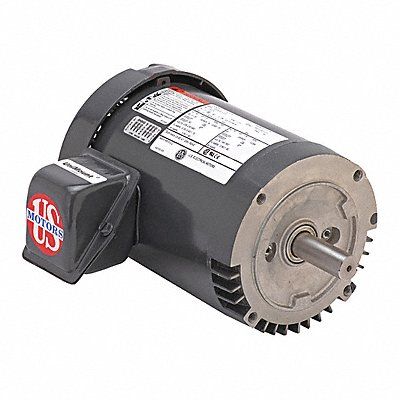

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.2-3.1/1.60 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Mfr U34S3ACR
| Item Reference | 55MM57 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
