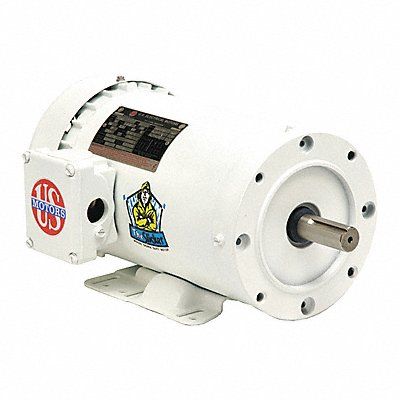

Washdown Motor Single Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.8-3.8/1.8 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Ins. Class F Max Ambient Temp 104 Degrees F NEMA Design None Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Finish White Epoxy Paint
Mfr WD1S3AC
| Item Reference | 56JC53 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
