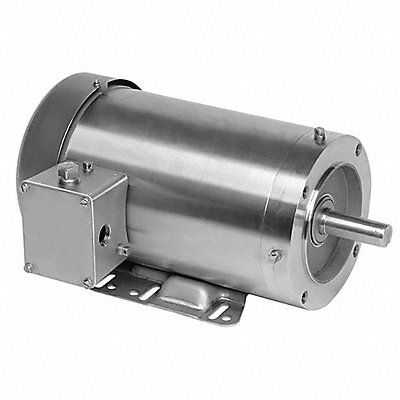

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.4-4.1/2.1 145TC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr WDS32P2ACR
| Item Reference | 56JC49 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 47 |
| Length (in) | 15.5 |
| Width (in) | 12.5 |
| Height (in) | 19.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
