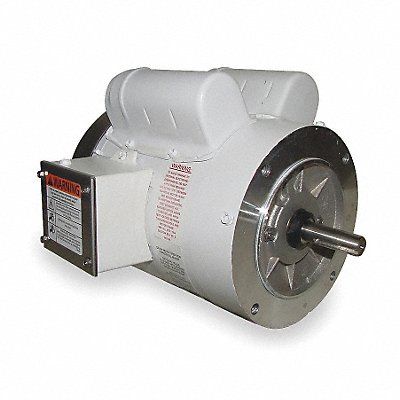

Washdown Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 3 600 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 7.3/3.9-3.7 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Auto Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base
Mfr WD12C1JCR
| Item Reference | 55ML69 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
