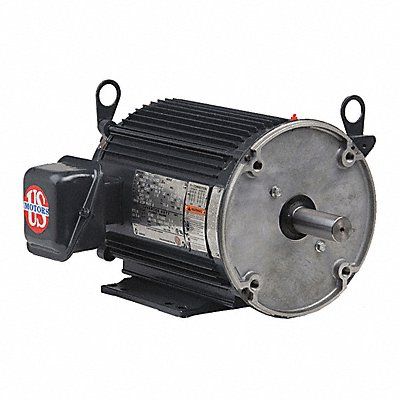

Vector Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 1.10/0.60 56 Frame Torque 1 ft-lb Max Speed 1 745 RPM Speed Range 5000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Rigid Base
Mfr UN13T2BC
| Item Reference | 56JC01 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 40 |
| Length (in) | 18.5 |
| Width (in) | 13.5 |
| Height (in) | 12.5 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
