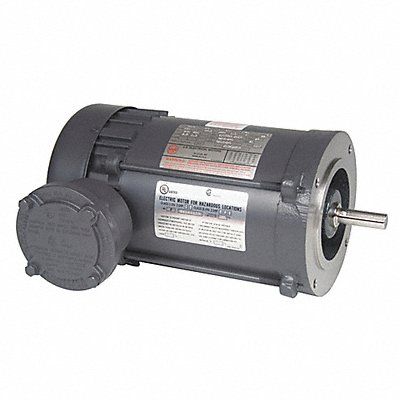

Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.3-3.3/1.6 143TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class B Hazardous Location Class 1 C D / 2 E F G Temp Code T3C Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Face NEMA Design B
Mfr XS1P2ACR
| Item Reference | 56JC79 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 42.5 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
