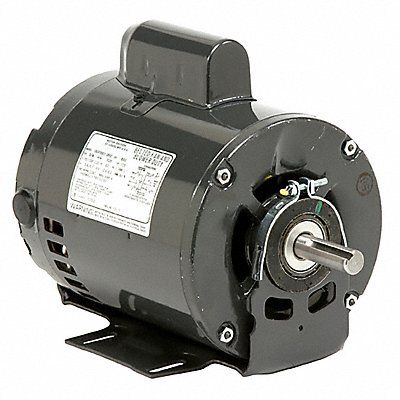

Motor Single Phase Motor Design Capacitor-Start 1/3 HP Nameplate RPM 1 725/1 425 No of Speeds 1 Voltage 110/220V AC 115/230V AC Full Load Amps 3.8/1.9 A 48 Frame 60/50 Hz Hz Motor Service Factor 1.35 Motor Thermal Protection None Ins. Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Motor Frame Material Steel Shaft Dia 1/2 in
Mfr D13CP2Z49
| Item Reference | 56HZ45 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 17.5 |
| Length (in) | 12.75 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
