| Item Reference | 41GJ13 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 6.65 |
| Length (in) | 3.7 |
| Width (in) | 9.8 |
| Height (in) | 3.4 |
| Harmonization Code | 8412210075 |
| Country of Origin | United States |

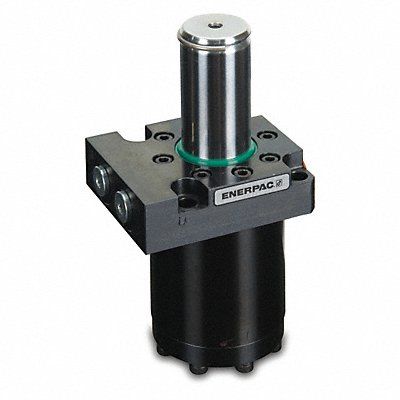

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 4 200 lb Total Stroke 0.78 in Effective Area Clamped 1.10 sq in Clamping Stroke 0.55 in Max Pressure 5 076 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 2.35 sq in Oil Capacity Clamped 1.22 cu in Oil Capacity Unclamped 2.6 cu in Max Oil Flow 140 cu in/min Pressure Range 500 to 5000 psi
