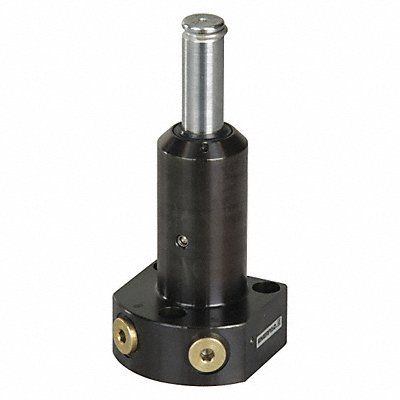

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 1 259 lb Total Stroke 0.89 in Effective Area Clamped 0.28 sq in Clamping Stroke 0.39 in Max Pressure 5 000 psi Series SLL Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 0.25 cu in Max Oil Flow 25 cu in/min Pressure Range 500 to 5000 psi Extended Height 5.33 in Outside Dia 1.37 in Mounting Hole Dia 1.38 in
Mfr SLLD52
| Item Reference | 41GJ07 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 2.43 |
| Length (in) | 6.1 |
| Width (in) | 4.92 |
| Height (in) | 4.13 |
| Harmonization Code | 8425420000 |
| Country of Origin | United States |
