| Item Reference | 2CMG9 |
|---|---|
| Brand | BELL GOSSETT |
| Weight (lb) | 2.1 |
| Length (in) | 3.8 |
| Width (in) | 2.7 |
| Height (in) | 4.8 |
| Harmonization Code | 8481809015 |
| Country of Origin | United States |

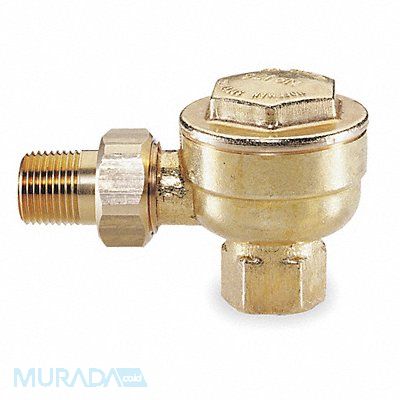

Steam Trap (F)NPT Connections 1 in Max Operating PSI 25 psi End to End Length 3 7/32 in Condensate Capacity Lbs/Hr 162 lb/hr Max Temp 353 Degrees F Type Thermostatic Downstream PSI Range 0 to 25 psi Body Material Brass NPT Inlet 1 in NPT Outlet 1 in NPT Port 1 in Pipe Configuration Angle Pressure Air Vent Self-Adjusting Application Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam
Mfr 17CA425
