| Item Reference | 5CB46 |
|---|---|
| Brand | DRIV-LOK |
| Weight (lb) | 0.55 |
| Length (in) | 4 |
| Width (in) | 1.5 |
| Height (in) | 1.5 |
| Harmonization Code | 7318290000 |
| Country of Origin | United States |

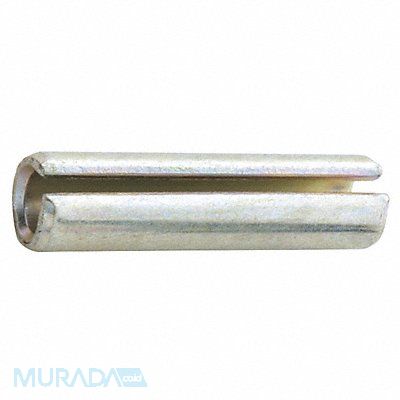

Spring Pin System of Measurement Inch Spring Pin Type Slotted Basic Material Steel Material Grade 1070 and 1080 Fastener Finish Zinc Plated Outside Dia 3/16 in Fastener Length 7/16 in Nominal Diameter 3/16 in Length Tolerance +/-0.015 in Chamfer Diameter 0.182 in Wall Thickness 0.04 in Chamfer Length (Min.) 0.011 in Chamfer Length (Max.) 0.055 in Actual Dia (Min.-Max) 0.194-0.199 in Fits Hole Dia (Min.-Max.) 0.187-0.192 in Double Shear Strength (Lbs.) 4 150 lb
Mfr SLTP1870437BT
