| Item Reference | 801M61 |
|---|---|
| Brand | CHAINFLEX |
| Weight (lb) | 0.08 |
| Length (in) | 18 |
| Width (in) | 13 |
| Height (in) | 6 |
| Harmonization Code | 8544493080 |
| Country of Origin | Germany |

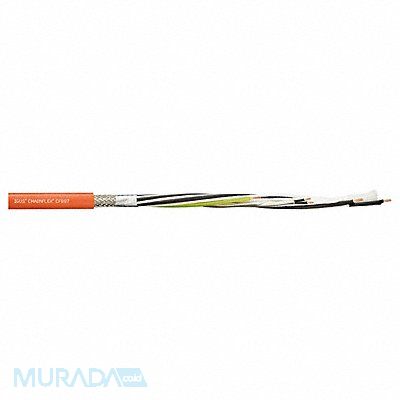

Servo Motor Cable Conductor Color Code Black/White Green/Yellow Conductor Grouping (4G0.75+(2x0.5)C)C Conductor Material Copper Includes Ground Yes Jacket Color Orange Jacket Material PVC Length Order by the Foot Maximum Acceleration 65.6 m/sq sec Maximum Operating Temperature 158 Degrees F Maximum Velocity - Unsupported 10 fps Minimum Bend Radius Factor - E-Chain 15 x OD Minimum Bend Radius Factor - Fixed 8 x OD Minimum Bend Radius Factor - Flexible 12 x OD
Mfr CF88707050201
