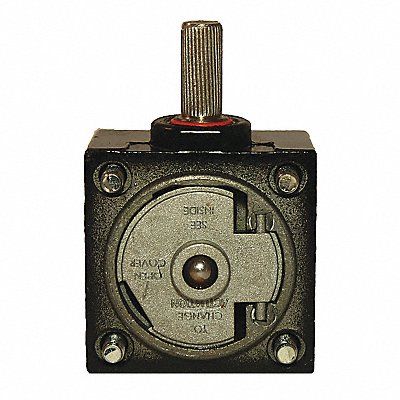

Limit Switch Head Actuator Style Rotary Actuator Location Side Contact Form Not Applicable Amps Not Applicable Voltage Rating 600V AC/250V DC Travel Differential Travel 7 Degrees max Overtravel 60 Degrees min Pretravel 15 Degrees max Movement CW and CCW Operating Force 1.7 in-lb Operating Temp 30 Degrees to 250 Degrees F NEMA Rating 1 3 4 4X 6 6P IP Rating Not Rated Standards CSA UL For Use With HDLS LSR Switches
Mfr LSZ1R
| Item Reference | 20Y050 |
|---|---|
| Brand | HONEYWELL MICRO SWITCH |
| Weight (lb) | 0.55 |
| Length (in) | 2.3 |
| Width (in) | 1.9 |
| Height (in) | 4 |
| Harmonization Code | 8536509055 |
| Country of Origin | United States |
